60 Micron Transparent Hot Melt Adhesive Film 150cm With Release Paper

Ask Lasest Price
Brand Name :	Hunter Men
Model Number :	HT07-60L
Certification :	ROHS, Reach,ISO9001
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T, D/A, D/P,Alibaba，Paypal
Supply Ability :	300rolls per day
Delivery Time :	3-7 work days

Add to Cart

Product Details
Company Profile

60 Micron Transparent Hot Melt Adhesive Film 150cm With Release Paper

Ecofriendly 60mic Transparent Hot Melt Adheisve Film For Toothbrush Badge Embroidery Label

Type:HT07-60L

Description:

It is a transparent thermoplastic materials that with release paper, it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production.It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.

Operate machine :iron,hot pressing machine or other hot composite machine.

60 Micron Transparent Hot Melt Adhesive Film 150cm With Release Paper

Physical Characteristics:

Color	Transparent	Release Liner	Silicone Glassine Release paper
Density	1.2±0.02g/cm³	Conventional thickness	60mic,80mic,100mic,150mic
Melt Flow Index	10-25g/10min	Conventional Width	50cm,100cm,150cm
Hard (Shore A)	73±2	Length	150yards
Flow Beginning Point	95℃	Normal Size /Rolls	150cm(width)*150yards(Length)

Recommended Bonding Conditions:

First Backing Operate		Second Hot Pressure Operate
Hot Pressing Temperature	140℃-160℃	Hot Pressing Temperature	140℃-160℃
Hot Pressing	1-5seconds	Hot Pressing Time	5-20 seconds
Pressure	0.6mpa	Pressure	0.6mpa

Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)

Applications:

HT07-60L is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix and crafts and so on.It's mainly used for packaging paper,carpet,aluminium-plastic panel,embroidery patch.

Ecofriendly 60mic Transparent Hot Melt Adheisve Film For Toothbrush Badge Embroidery Label 1

Ecofriendly 60mic Transparent Hot Melt Adheisve Film For Toothbrush Badge Embroidery Label 2

May You Interesting:

TPU Hot Melt Adhesive Film
Type	HT07-66	HT07-58	HT08-90	HT02-08
Color	transparent	transparent	milky translucent	milky translucent
Bottom Materials	Double Silicon Glassine Release Paper		Single Silicon Glassine Release Paper
Melt Point(℃)	115	95	60	90
Melt Index	8g/10min 190(℃)2.16kg	30g/10min 190(℃)2.16kg	40g/10min 190(℃)2.16kg	20g/10min 190(℃)2.16kg
Shore Hardness(A)	81	76	97	97
Thickness(mm)	0.03-0.3	0.03-0.3	0.03-0.3	0.03-0.3
Width(mm)	7-1500	7-1500	7-1500	7-1500
Length(yd)	100-300	100-300	100-300	100-300
Pressing Time(S)	5-15	5-15	5-12	5-12
Pressing Temperature(℃)	120-180	120-160	80-140	80-140
Adhesive Strengh(N)1c㎡	>60	>70	>80	>80
Washable
40(℃)	***	***	***	***
60(℃)	**	**	*	**
80(℃)	NO	NO	NO	NO
Feature	very soft, good elasticity and stickiness	very soft, good elasticity and stickiness, long time non-yellowing	lower work temperature,good stickiness,widely adhesion arange.	lower work temperature,good stickiness,widely adhesion arange.

Packaging Details:

1PC/PE FILM, 100yard/roll, 2 rolls/CTN, or it's up on the customer's option

Delivery Detail:

Shipped in 3-15 days after payment

Company Profile:

		Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on. Our factory has passed ISO9001:2015 quality control certification system. The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film.

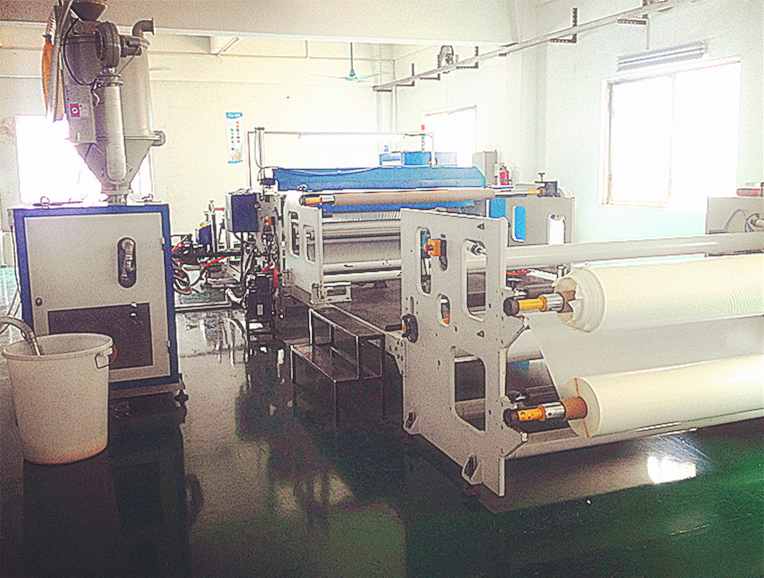

Film Casting Machine	Film Coating Machine	Film&Tape Slitting machine	Fully Automatism Number Control Slitter	Fully Automatism Number Control Guillotine

Support Customization Production:

We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.

1. According to the Film Performance:

Melt Point: 70-110℃,

Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),

Thickness:0.05mm-1mm,

Width: 5mm-1500mm,

Length:1M-1000M/roll,

Colors:All of colors

2.According to the base material:

A. Single/Double side silicone glassine release paper,

B. Single/Double side silicone kraft release paper,

C. Single/Double side silicone PE coated paper,

D. Matte / Glossy PP paper,

E. Matte / Glossy Pearlescent paper,

F. Single/Double side silicone PET release film,

G. Without base materials

H. You also can choose the base materials thickness and grammage.

We can tailor hot melt film as your business and demands.

FAQ:

Q1) . What is hot melt adhesive film?

A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,

Q2).Do you accept OEM or ODM?

Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,

Q3).How do you ship the products?

If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,

Q4). Do you provide free sample? And how many days it will take?

Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,

Q5). How long is the lead time?

Sample lead time: 1-3 days

Bulk lead time: 7-20days(depends on order quantity),

Q6). How do I pay for my order?

We usually accept L/C ,T/T ,Western Union , Paypal.
