0.98g/Cm3 Embroidery Patch Backing Glue EAA Thermal Adhesive Film

Ask Lasest Price
Brand Name :	Hunter Men
Model Number :	HT01-20A
Certification :	SGS，ISO9001
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T, D/A, D/P,Alibaba，Paypal
Supply Ability :	300rolls per day
Delivery Time :	3-7 work days

Add to Cart

Product Details
Company Profile

0.98g/Cm3 Embroidery Patch Backing Glue EAA Thermal Adhesive Film

EAA Clear 0.98g/cm3 100cm width Hot Melt Glue Film For Embroidery Patch

Description:

Hunter-MEN HT01-20A(Po hot melt adhesive film) is a double-layer structure (release paper +hot melt adhesive film)products, it have excellent stickiness for textiles,metals and other materials,the features are non-elastic,washable, transparent and environmentally,so it’s widely used to clothing logos industries.

0.98g/Cm3 Embroidery Patch Backing Glue EAA Thermal Adhesive Film

Physical Characteristics:

Color	Clear	Release Liner	Release paper
Density	0.98g/cm³	Conventional thickness	60mic,80mic,100mic,120mic,150mic,180mic
Melt Flow Index	50±20g/10min Condition:190℃/2.16KG ASTMD1238-04	Conventional Width	5MM-1500MM
operating Temperature	120℃-170℃	Length	100yards

Recommended Bonding Conditions:

First Backing		Second Hot Pressure
Mechanical Mold Temperature	120℃-150℃	Mechanical Mold Temperature	140℃-170℃
Hot Pressing Time	3-5seconds	Hot Pressing Time	5-20seconds
Pressure	0.6mpa	Pressure	0.6mpa

Applications:

Hunter-MEN HT01-20A is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix and crafts and so on.It's mainly used for packaging paper,carpet,aluminium-plastic panel,embroidery patch.

0.98g/Cm3 Embroidery Patch Backing Glue EAA Thermal Adhesive Film

HOW TO USE:

Hot melt adhesive film have 2 layers(release paper +hot melt adhesive film)

1. Put hot melt adhesive film on the bonding material A, and release paper layer is up, hot melt adhesive film layer is down,the sequence: release paper +hot melt adhesive film+material A

2.Put release paper +hot melt adhesive film+material A in hot pressure machine,and hot pressing on the release paper side

3.After that cooling, peel out the release paper

4.Put material B on the hot melt adhesive film,,the sequence: material A+hot melt adhesive film+material B, then hot pressing again

Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)

Other Hot Melt Glue Film For Embroidery Patch
Type	HT03	HT01-2000	HT01-4000	HT05
Color	Milky White	Transparent	Transparent	Transparent
Bottom Materials	Single Silicon Glassine Release Paper
Melt Point(℃)	108	85	80	100
Pressing Temperature(℃)	120-160	110-150	100-140	120-160
Adhesive Strengh(N/1c㎡)	>80	>80	>80	>80
Normal Thickness	0.06mm,0.08mm,0.1mm, 0.12mm,0.15mm
Dry Cleaning	*	NO	NO	***
Washable
40(℃)	***	***	***	***
60(℃)	**	*	NO	**
80(℃)	*	NO	NO	*

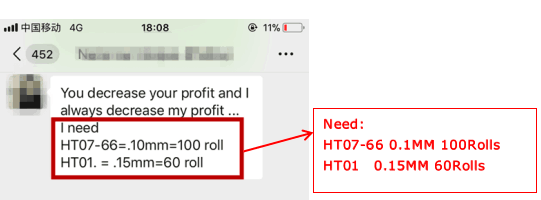

Customer Feedback

Package

Delivery Date: 1-7days after confirmed the samples and received the payment

Package:1PC/PE FILM, 100yard/roll, 2roll/CTN, or it's up on the customer's option.

0.98g/Cm3 Embroidery Patch Backing Glue EAA Thermal Adhesive Film

Why Choose Us:

1, more than 10 years experience in production.

2, well-known products: Sichuan Famous Brand.

3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise

4, Excellent quality and Competitive price, OEM is available.

5, Stable supply: an extensive range of stock.

6, The whole process from material to end products is under supervision.

Our Service:

1, Your inquiry will be replied within 24 hours and online service is available all the time.

2, Well-trained & professional sales persons are here ready to answer all your questions and handle the problems.

3, Prompt delivery time: within 15 days after agreement

4, Flexible payment terms: T/T, L/C, O/A, Western Union, Paypal, Escrow, etc.

5, Your business relationship with us will be confidential to any third party.

6, Good after-sale service offered, please get back if you got question

If you have any other questions, please tell us soon, and we will try our best to offer our better service and products for you.
